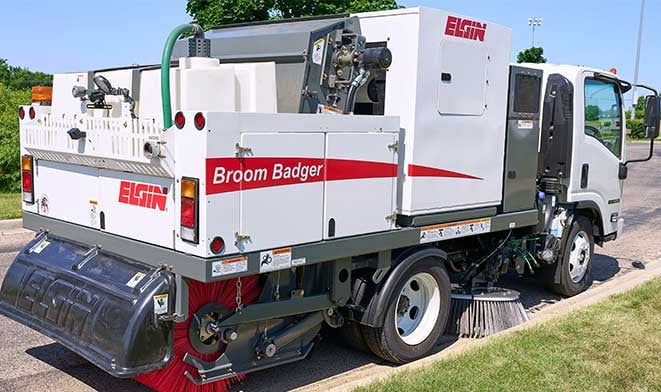

Broom Badger
- Looking for a maneuverable yet powerful compact mechanical sweeper? If so, consider the Broom Badger® from Elgin® Sweeper. This dual-engine sweeper is easy to operate and maintain and does not require a Commercial Drivers License (CDL) to operate, making it ideal for municipal and contractor customers who need powerful cleaning in a size that benefits their operations. The compact, low-profile design allows easy access to tree-lined streets. And the short, 109-inch (2769 mm) wheelbase and tight turning radius give the operator great maneuverability for cul-de-sac curb lines and tightly winding streets without sacrificing sweeping performance.
- The Broom Badger is mounted on a 19,500 lb. Class 5 cab-over chassis available with standard air ride suspension. It features a 4.0 yd3 (3.06 m3) hopper with variable height dumping, up to 10 ft. (3.048 m), a 220 gallon (833 L) water tank for dust suppression, and dual gutter brooms for a 10 foot (3.048 m) wide sweep path.
Why Broom Badger
- Excellent on millings and granular debris
- Powerful 65 hp auxiliary engine
- Compact design for extreme maneuverability
- Highway speeds
- Non-CDL; 19,500 lb GVWR chassis
- Available with the LIFELINER hopper system which greatly improves the life, durability, and functionality of the hopper
- Sold and serviced through a network of more than 100 dealer locations worldwide

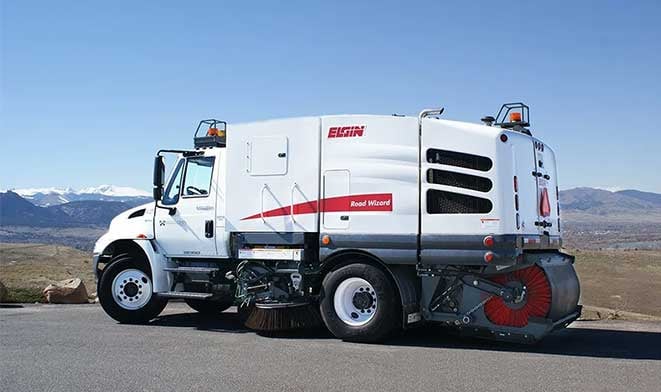

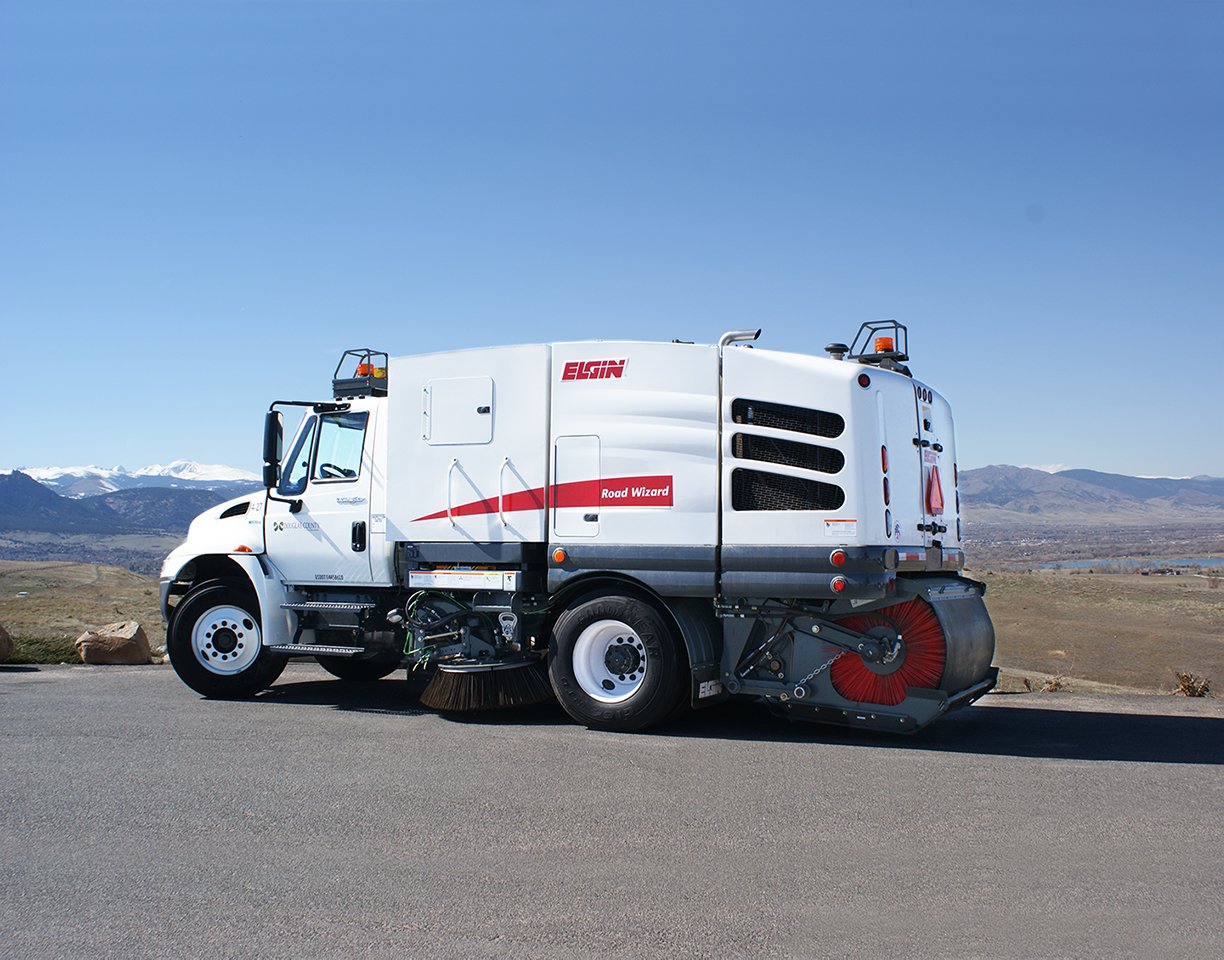

Road Wizard
Product Overview
The Elgin® Road Wizard® mechanical broom sweeper has a powerful, dual-engine design with a 360-gallon (1363l) water tank for superior dust control and a large 5.4 yd3 (4.1 m3) hopper. This sweeper features a double-scissors lifting mechanism, which is center-mounted for greater stability, rigidity, and trouble-free operation. Plus, its dumping height is variable up to 11 feet, 2 inches (3404 mm), and 11” (279 mm) of hopper side-shift ensuring uniform dumping.
The Elgin Road Wizard is now available with your choice of squeegee or no-jam belt conveyor systems depending on the application requirements. The Road Wizard offers the flexibility of mounting on a selection of commercial cab-over or conventional chassis. Due to its quad-pump hydraulics design, all sweeper functions operate in parallel, allowing the Road Wizard to power through any heavy construction and gravel loading application.
Why Road Wizard
- Large 5.4 yd3 (4.1 m3) hopper
- Standard squeegee with patented interchangeability to chevron conveyor belt system
- 11" (279 mm) hopper side shift for maximizing dump truck/container payload distribution
- 74hp Cummins Tier 4 final auxiliary engine
- Quad-pump hydraulic system for maximum power to the ground while sweeping

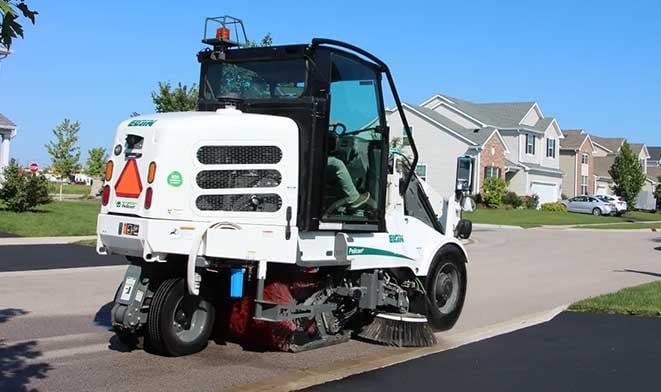

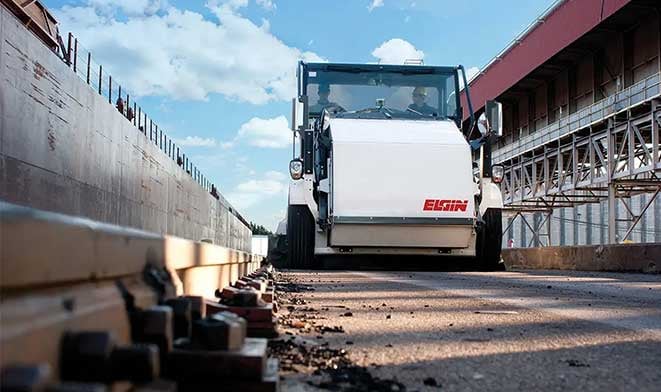

Pelican
The Elgin® Pelican® broom sweeper is a three-wheel mechanical sweeper based on one of the original street sweeper designs, which has been continuously improved since 1914, meeting the highest sweeper standards. Maneuverability, visibility, economy, serviceability, and single-lane dumping with a sweep system that easily handles heavily compacted dirt and bulky debris are all features of the Elgin Pelican. An isolation-mounted cab provides a cleaner, quieter operation, and the improved 360-degree visibility and easier access for service and maintenance make the Elgin Pelican an industry leader in road sweepers.
The Pelican is also available with Elgin's innovative waterless dust control feature; allowing year-round sweeping, sweeping with water conservation, and eliminating water use on reactive compounds like Portland cement.
Why Pelican
- Market leader offering 360 degrees of operator visibility
- Rear steer for outstanding maneuverability
- Front mounted, variable high dump 3.6 yd3 (2.8 m3) hopper
- Elgin exclusive chevron conveyor belt

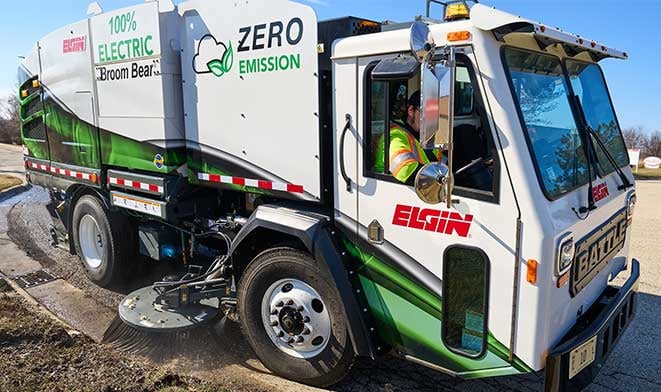

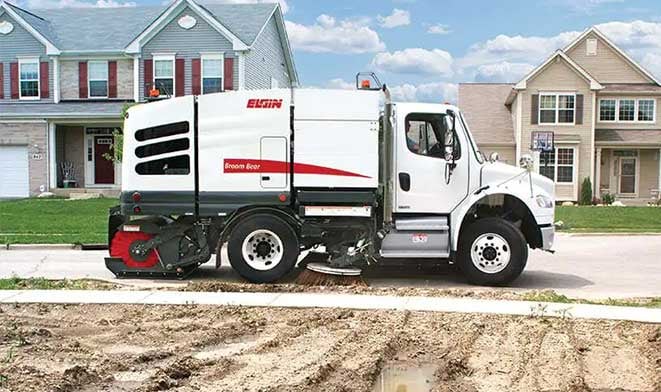

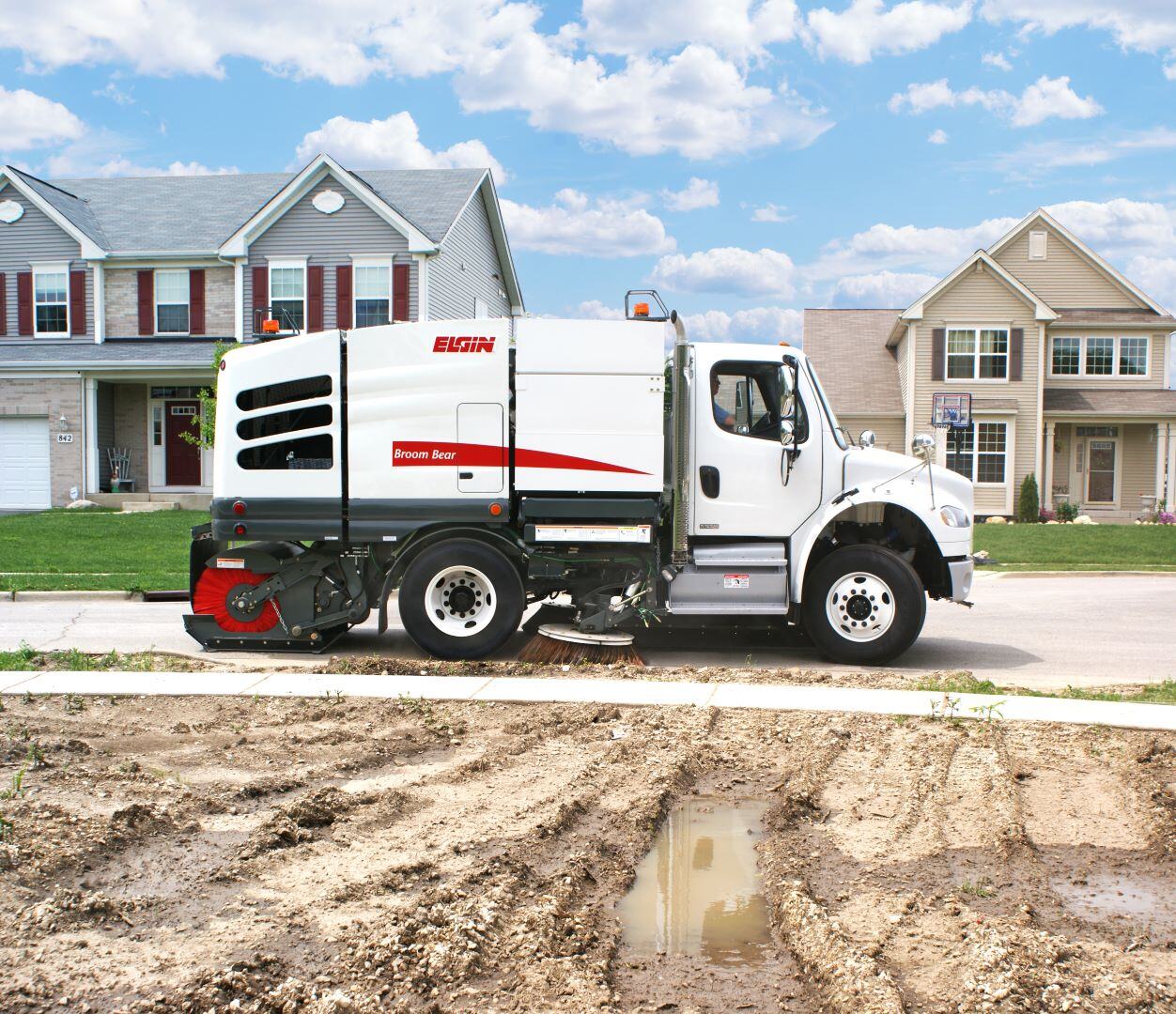

Broom Bear
Product Overview
The Elgin® Broom Bear® four-wheel mechanical (broom) sweeper is the epitome of durability and longevity. It boasts unparalleled efficiency, making it the top choice on the market. The sweeper is mounted on a commercially available conventional or cab-over chassis, complete with fully dualized controls (single-steer optional) and an intelligent single-engine design that utilizes the chassis engine to power the sweeper. The Elgin Broom Bear features a large hopper and water tank, which translates to more productive sweeping time. Its single-engine design ensures minimal maintenance or the need for replacement sweeper parts. A variable dumping height and 11” (279 mm) of hopper side-shift make dumping effortless. Choose between the squeegee or no-jam belt conveyor systems, depending on the application requirements. The Elgin Broom Bear is ideal for sweeping in congested urban areas and far away rural locations, thanks to its short wheelbase, large brooms, and dual-mode air suspension system.
The Elgin Broom Bear is available as an optional alternative fuel sweeper including compressed natural gas (CNG) or Hybrid.
Why Broom Bear
- Single-engine technology
- Twin variable displacement hydraulic pumps for increased sweeper system efficiencies
- 4.5 yd3 (3.4 m3) hopper standard
- Variable dump height up to 11 feet, 2 inches (3404 mm)
- 11" (279 mm) hopper side shift for maximizing dump truck/container payload distribution
- Squeegee with patented interchangeability to chevron conveyor belt system

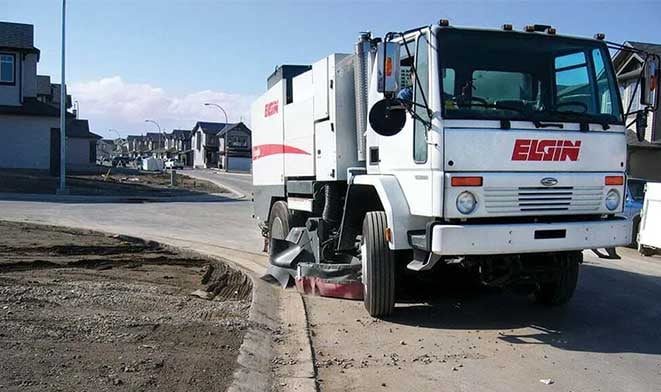

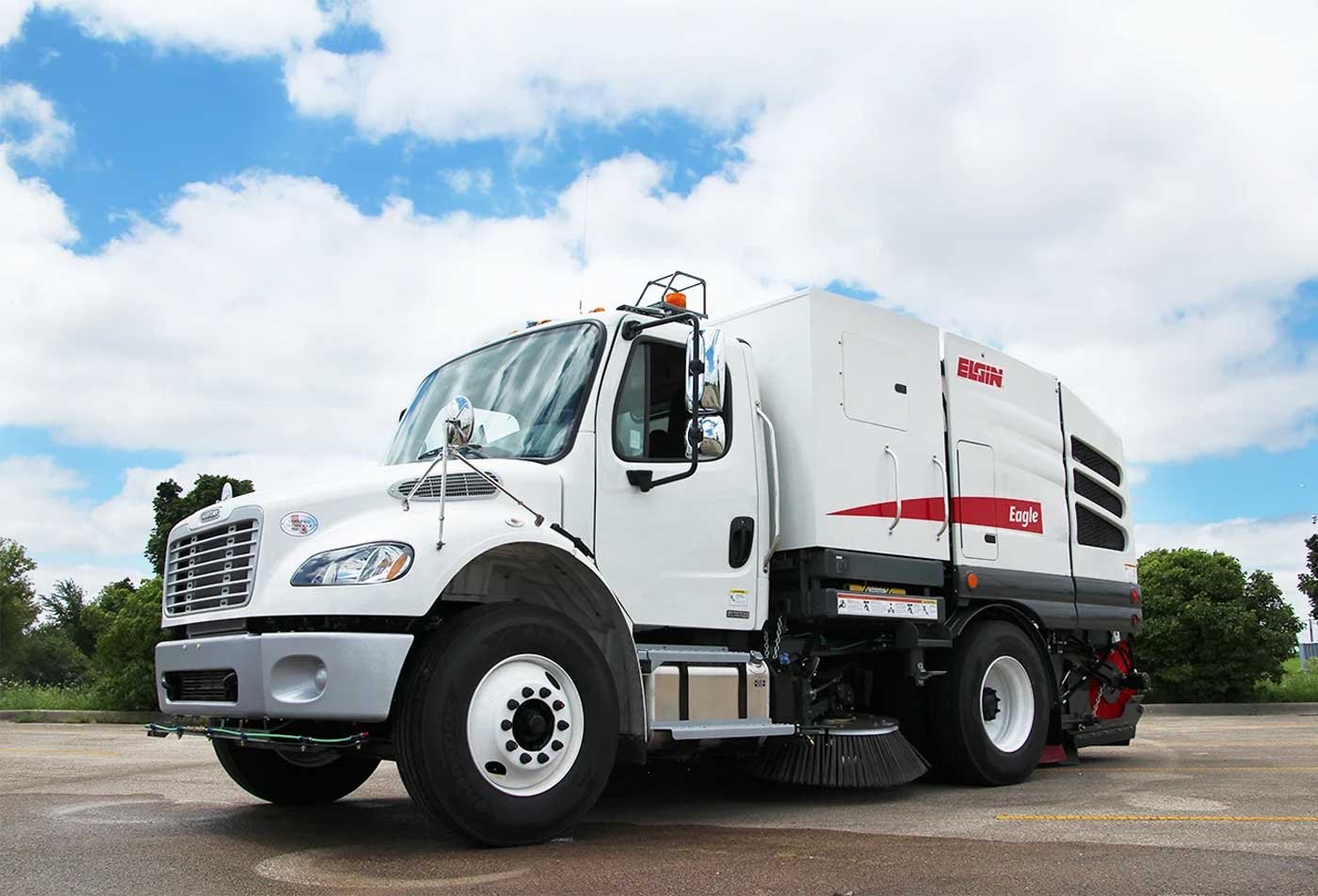

Eagle
Why Broom Badger
- 74hp Cummins Tier 4 final auxiliary engine
- 4.5 yd3 (3.4 m3) hopper standard
- Variable dump height up to 11 feet, 2 inches (3404 mm)
- 11" (279 mm) hopper side shift for maximizing dump truck/container payload distribution
- Chevron conveyor belt system with patented interchangeability to squeegee system
